Idea
The idea was to create a coffee table with a large led matrix, and corresponding proximity sensors. The sensors allow you to have a cool indicator of where objects on the table are or play fun games like pong or airhockey. This is a project I started for fun and decided to make modular and customizable to fit any potential table size.
Controller

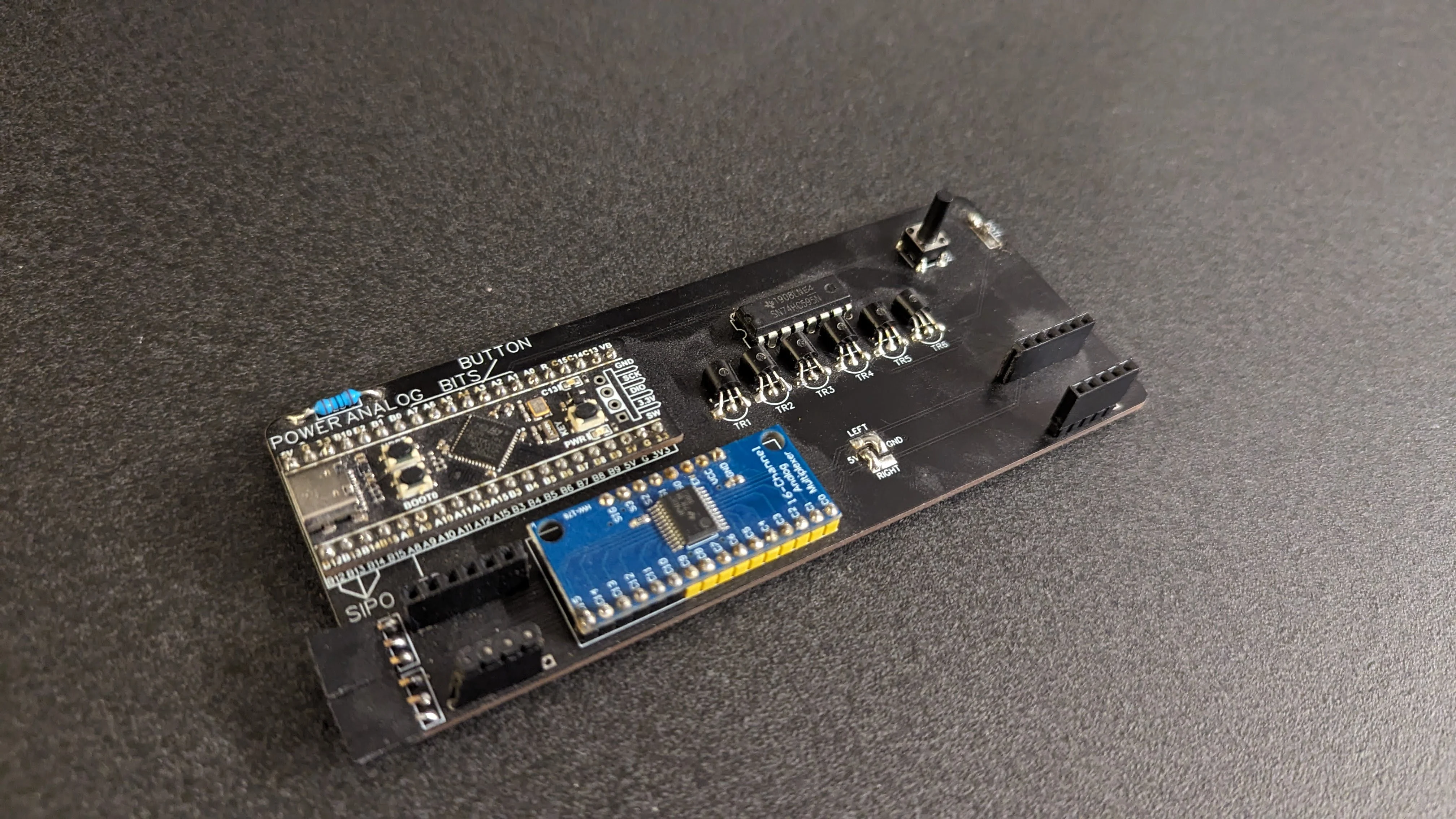

The controller board uses a STM32F4 and an analog multiplexer to evaluate all sensor data and control the leds.
![](/led-table/controller.webp)
Panels

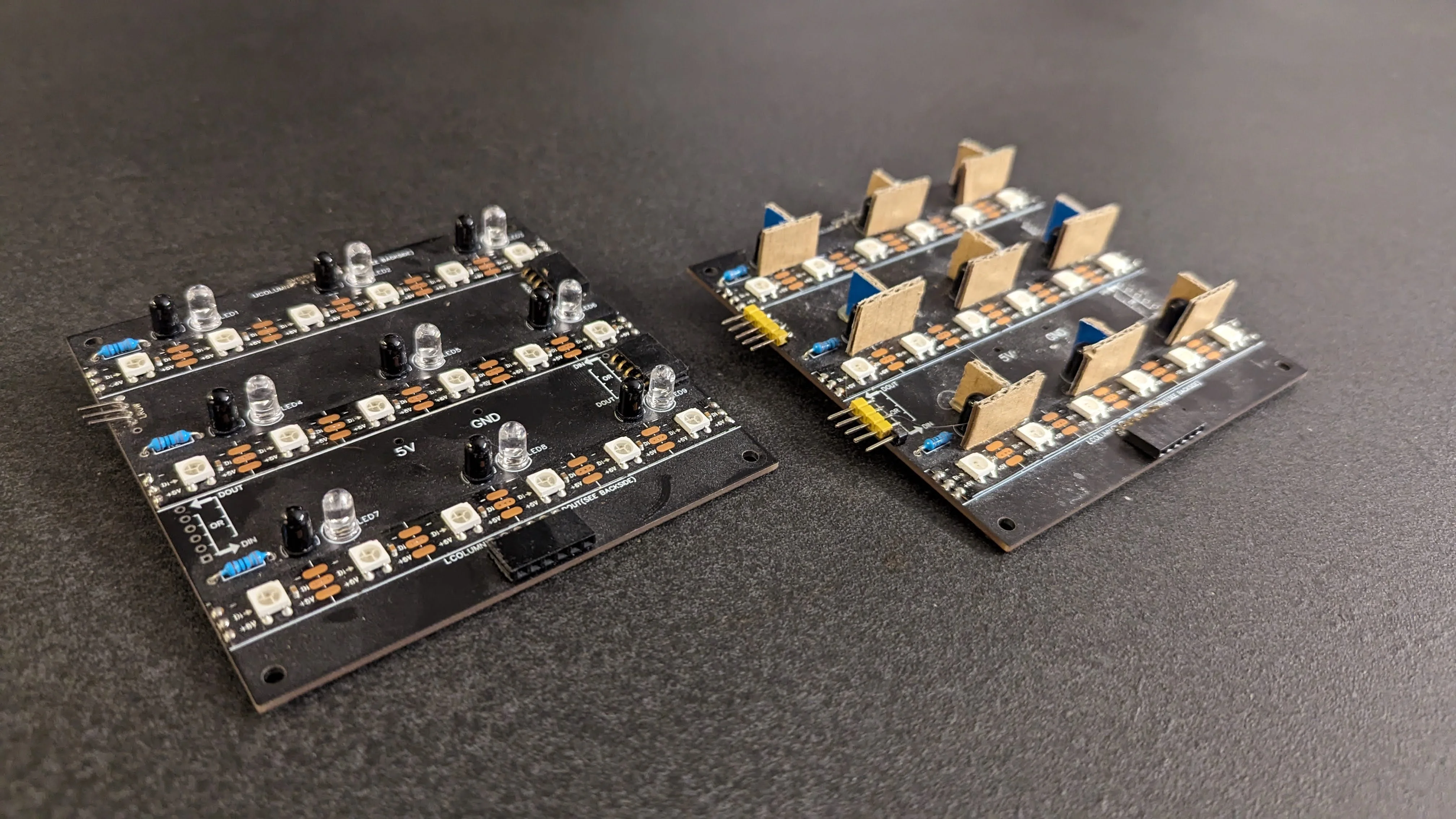

The table is built using 10cm x 10cm pcbs, which include a 6x3 led matrix and a 3x3 sensor arrangement. The proximity sensors are made up of a simple infrared LED and infrared photoresistor.
![](/led-table/led table pcbs.webp)

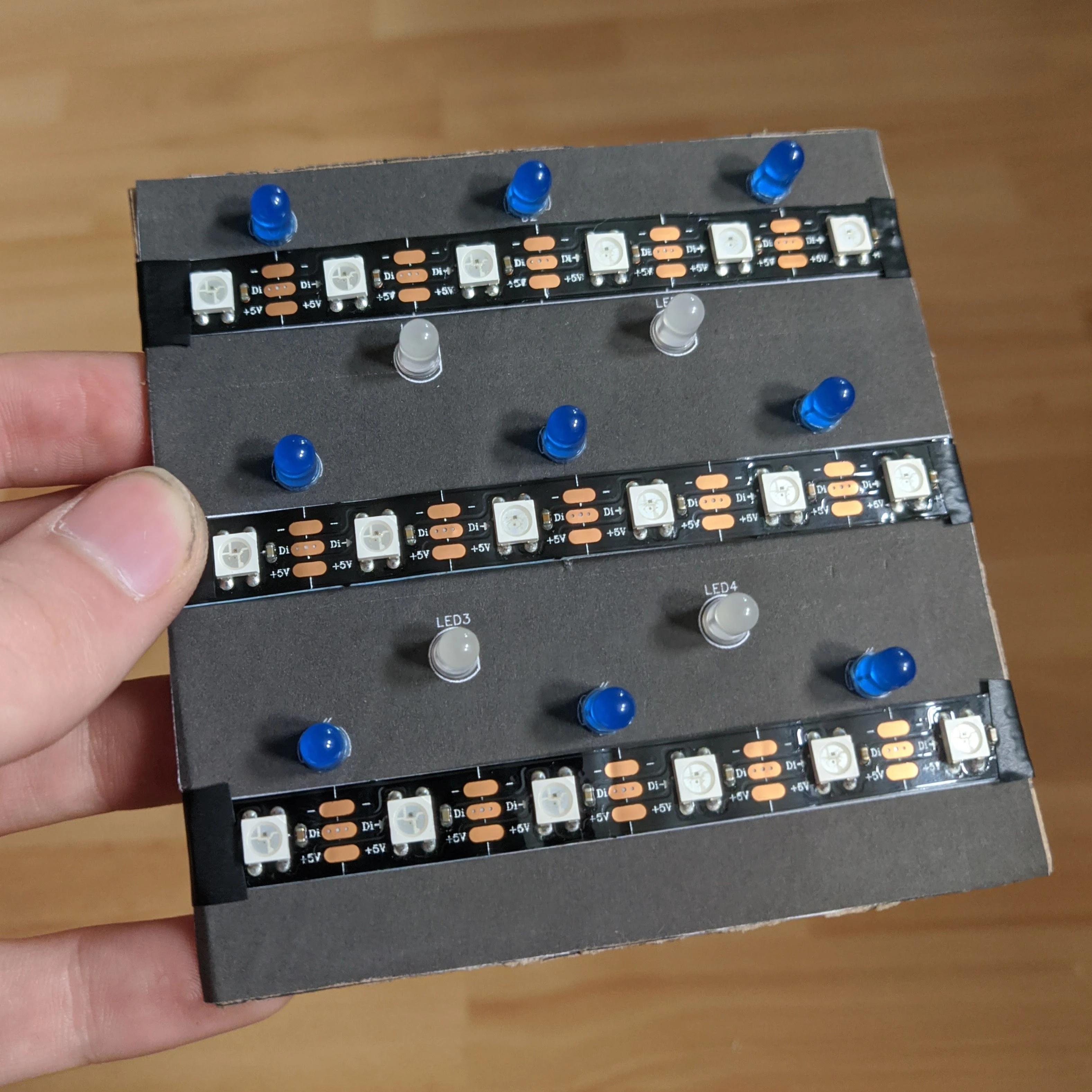

From cardboard prototype to a first pcb design:
![](/led-table/cardboard test.webp)
![](/led-table/2x2.webp)
A proximity test using a single panel:
An LED rainbow test using cardboard panels:
